# Forms

The main building blocks used when Control is operating through Forms.

Forms is typically used for delegated administration, self-service processes, approval workflows, and identity lifecycle management.

Forms can also be presented through an optional [Launchpad](/control/key-components/forms/launchpad.md) experience when you want to group several flows behind a shared navigation view.

A Form is built from a small set of reusable components:

* Flows – the complete process executed by the user.
* Steps – individual pages within the Flow.
* Controls – user interface elements shown on a Step.
* Pipes – logic used to retrieve data, save changes, or execute business rules.

Together, these components make it possible to build everything from simple data lookup pages to advanced multi-step administration workflows.

<figure><img src="https://content.gitbook.com/content/4E9RVuMbT4Q3efxn8tVF/blobs/MZiyzCdMpfcuKhtWwYiv/forms_flow_eng.png" alt="A Flow contains one or more Steps. Each Step contains one or more Controls. Pipes provide the logic that retrieves data, performs validation, and saves changes."><figcaption></figcaption></figure>

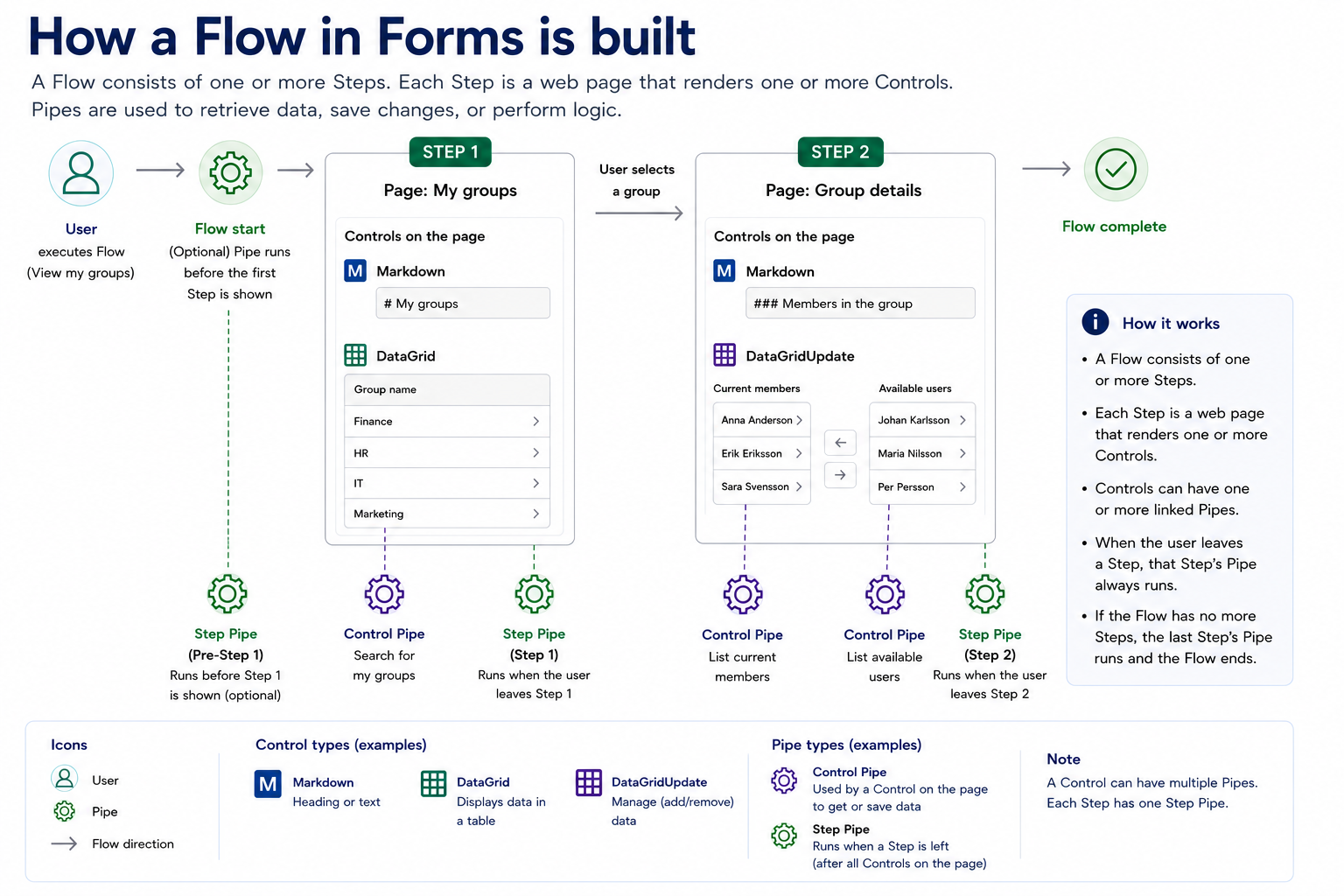

*A Flow contains one or more Steps. Each Step contains one or more Controls. Pipes provide the logic that retrieves data, performs validation, and saves changes.*

### Forms architecture overview

The diagram below illustrates how the different components work together in a typical Flow.

In this example:

1. A user starts a Flow.
2. An optional pre-step Pipe can prepare data before the first page is displayed.
3. Step 1 displays a list of groups using Controls on the page.
4. When the user selects a group and leaves the Step, the Step Pipe executes.
5. Step 2 displays details about the selected group.
6. Additional Control Pipes retrieve and update data.
7. When the final Step is completed, the Flow ends.

### Key concepts

#### Flow

A Flow represents the complete user journey.

A Flow contains one or more Steps and defines the overall process from start to finish.

Examples:

* View my groups
* Create a user
* Request access
* Manage group membership

#### Step

A Step is a single page within a Flow.

Each Step renders one or more Controls and may execute a Step Pipe when the user leaves the page.

Typical examples include:

* Search page
* Details page
* Confirmation page

#### Control

Controls are the building blocks displayed on a Step.

Examples include:

* Markdown
* DataGrid
* DataGridUpdate
* Input controls
* Selection controls

Controls are responsible for presenting information and collecting user input.

#### Pipe

Pipes contain the logic behind the Flow.

They are commonly used to:

* Retrieve data
* Validate input
* Save changes
* Execute business logic
* Integrate with external systems

There are two main types of Pipes:

**Control Pipe**

A Control Pipe is connected to a specific Control.

It is typically used to populate a Control with data or save information entered by the user.

**Step Pipe**

A Step Pipe belongs to a Step.

It runs when the user leaves the Step and is commonly used to perform validation, persist changes, or prepare data for the next Step.
